Metals
Decking Sheets

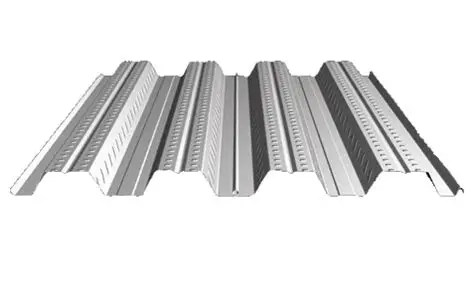

Metal floor deck with ribbed profiles, including 45/150 and 75/305.
Metal decking sheets for composite floors. The ribbed profile, with embossments, locks into the concrete so the sheet is both permanent formwork and tensile reinforcement. Standard profiles are 45/150 and 75/305. Made from pre-galvanized steel to ASTM A653, Grade D, zinc G90. Other grades can be supplied. Used on multi-storey floors, mezzanines, walkways, and platforms.
Specifications
06 listed
- 45/150
- 900 mm covering width
- 75/305
- 914 mm covering width
- Thickness
- 0.5 mm to 1.5 mm
- Steel
- pre-galvanized, Grade D
- Zinc
- G90 (275 g/m²)
- Standard
- ASTM A 653
