Metals

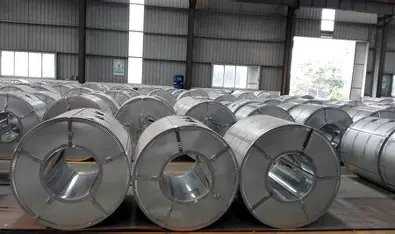

GI Mill Finish Coils
Hot dip galvanized steel coils and sheets to ASTM A653, JIS G3302, and EN 10346.
Hot dip galvanized steel coils and sheets to ASTM A653, JIS G3302, and EN 10346. The steel is coated with zinc for corrosion resistance. Surface treatments include regular and minimum spangle, zero spangle, oiled and dry, chromated, non-skin pass, and skin pass. Size and thickness can be made to order. Used in transport, light industry, civil work, farming, and construction.
Specifications
08 listed
- Thickness
- 0.30 mm to 3.80 mm
- Width
- 600 mm to 1250 mm
- Zinc coating
- 30 to 275 g/m²
- Internal diameter
- 508 mm or 610 mm
- Coil weight
- 3 to 12 MT
- Quality
- commercial and structural
- Standards
- JIS G 3302, ASTM A 653M, EN 10327
- Grades
- SGCC, CS, FS, SS, LFQ, DX51D+Z, S280GD
