Fence
Fencing Panels & Hoardings
Temporary fencing panels (discontinuous) and continuous corrugated fencing, with complete accessories. Metal panels used mainly on construction sites.

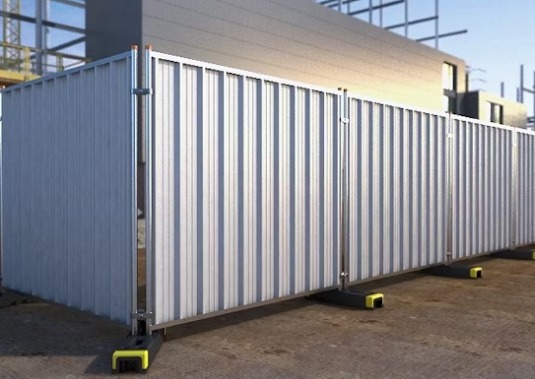

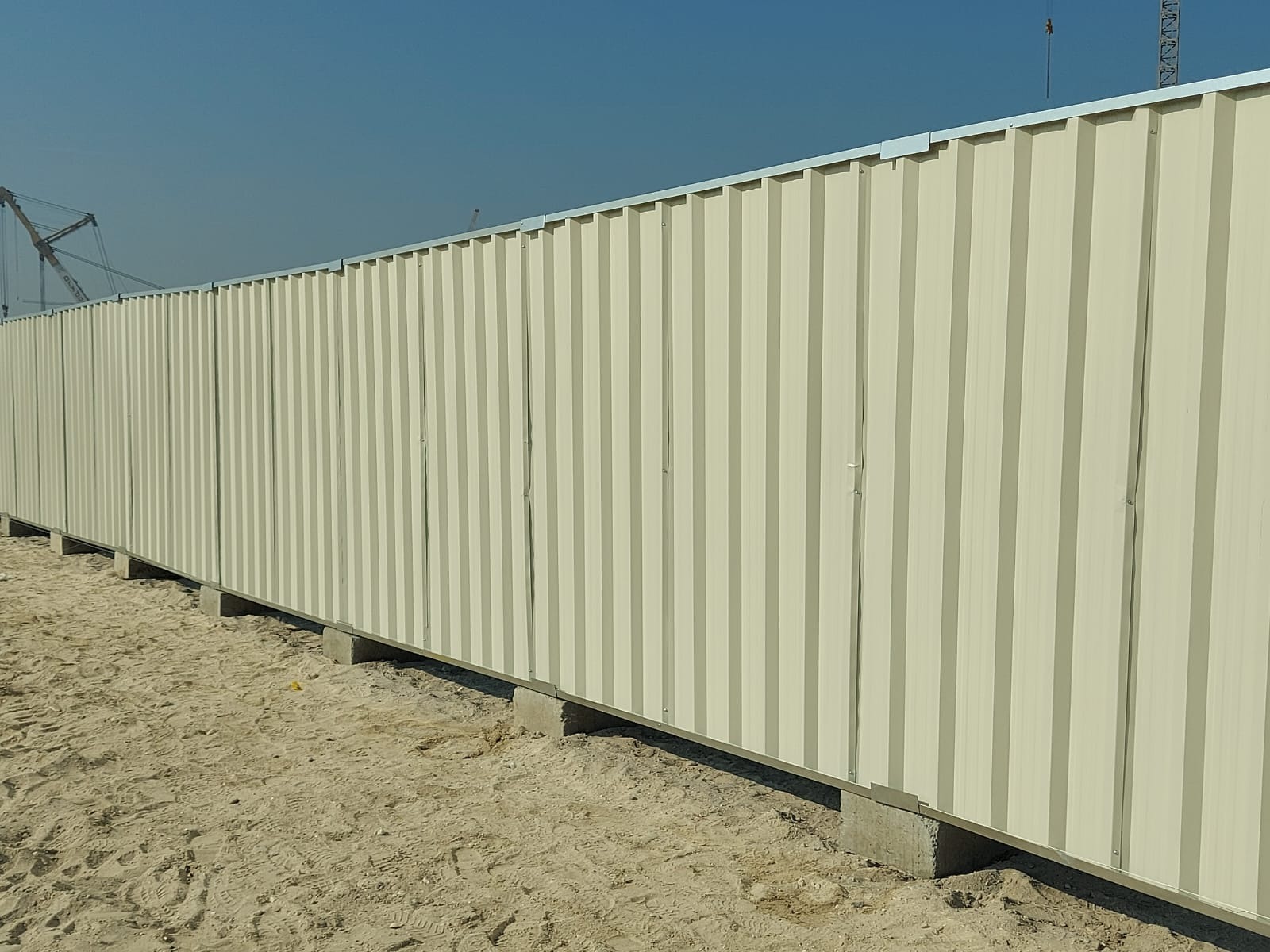

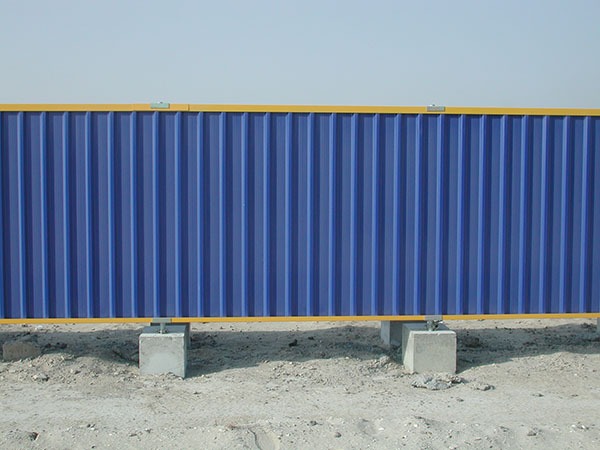

Fencing panels and hoardings are corrugated galvanized steel boundaries for construction sites and industrial yards. They are supplied with U-channels, GI pipes, clamps, and concrete blocks. Discontinuous panels are fixed on concrete blocks at 2 metre intervals and back-stayed at the junction. Continuous fencing overlaps the sheets so there is no gap in the run, and is usually back-stayed at 2.5 metre intervals with galvanized ERW pipes. Both types are fireproof, strong, and can be installed and removed.
Specifications
08 listed
- Fencing sheet
- 0.30 mm x 1.0 m x 2.0 m
- Standard colour
- RAL 9002 off-white, with other RAL colours available
- Galvanized U-channel
- 40 mm x 40 mm x 40 mm, 1.2 mm to 2.0 mm, 2.18 m
- GI pipe
- 42 mm OD, 2.2 m long, 1.2 mm to 2.0 mm
- GI clamp
- 3.0 mm
- Concrete block
- 600 mm x 400 mm x 200 mm
- Frame
- 2.15 m x 2.0 m (4.30 m²)
- Types
- discontinuous panels, or continuous overlapped sheets
